Flyfun 12A ESC V-4, lennokki
Flyfun 12A ESC V-4, lennokki
Hobbywing

Flyfun 12A ESC V-4, lennokki

Tuotetta rajoitettu erä.
13,39 €
19,13 €
Sisältää alv. 25.5 %
Saatavuus Varastossa

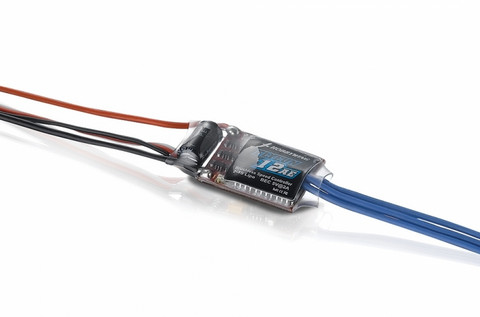

Hobbywing Flyfun 12A ESC

  • Harjattomille moottoreille
  • Virrankesto jatkuva 12A, hetkellinen 15A
  • Jännite 2-4S lipo
  • BEC Lineaarinen 5V/2A
  • Ei liittimiä
  • Ohjelmoitavissa radiolla tai Hobbywing Skywalker ohjelmointikortilla
  • Koko 38x18x7mm
  • Paino 10g

Hobbywing Flyfun 12A-E 2-4S ESC

Great PerformanceImported components and the PCB (printed circuit board) with extremely low impedance adopted by FlyFun ESCs gurantee great current endurance, good performance and high reliability.Programmale ParametersWith a rich set of programmable parameters (via a LED program card/box), FlyFun ESC is applicable to various aircraft (like fixed-wing, heli, multirotor and etc.)

Multiple ProtectionsMultiple protection features include abnomal input voltage, ESC thermal, throttle signal loss (or Fail Safe), and low voltage cutoff effectively prolongs the service life of the ESC.

Specifications

  • Brushed/Brushless: BL
  • High Voltage/Regular: Regular
  • Cont./Peak Current: 12A/15A
  • Input: 2-4S LiPo
  • BEC Output: Linear mode:5V,2A

Wires & Connectors

  • Input Wires: Red-20AWG-100mm*1, Black-20AWG-100mm*1
  • Output Wires: Blue-20AWG-100mm*3
  • Input Connectors: No
  • Output Connectors: No

ESC Programing via

  • Transmitter: Supported
  • LED Program Card: Supported
  • LED Program Box: Not Supported
  • LCD Program Box: Not Supported
  • WiFi Module: Not Supported
  • Program Port: Program/Throttle Wire

Firmware

  • Firmware Upgrade: Not Supported

Size & Weight

  • Size: 38 x18 x7 mm
  • Weight: 10 g
