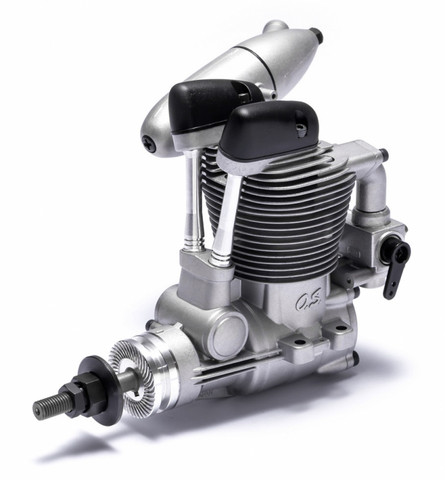

O.S. FS-64V 10,46cc 4-tahtinen nitro sis. äänenvaimentimen
O.S. FS-64V 10,46cc 4-tahtinen nitro sis. äänenvaimentimen
Tilavuus 10,46cc
Syl. halkaisija 25,0mm
Iskun pituus 21,3mm
Teho 1,12hp / 11.000rpm
Kierroslukualue 2.400 - 11.000rpm
Moottorin paino 442g
Äänenvaimentimen paino 44g
Potkurisuositus 12x6-8 tai 13x6-7 (14x6 scale)
===========
O.S. FS-64V 4-stroke Engine for scale/sport airplanes
By increasing the stroke, not only propellers of 12x7-8 and 13x6 sizes, but also propellers with large loads (13x7-8, 14x6) can be used without any loss of power.
A newly designed cylinder head is adopted along with the increased displacement. The internal capacity of the combustion chamber has been expanded to achieve more realistic 4-stroke exhaust sound and more power.
The F-4051 silencer, which is a unique design of the FS-V series, has revised the internal dimensions and improved the exhaust efficiency while maintaining the comfortable 4-stroke sound.
The drive washer has been changed to a machined aluminum with a woodruff key. Additional standard equipment is set if lock nuts that prevents the propeller from coming off.
Standard accessory:
- Type F glow plug
Specs:
- Displacement: 10.46cc
- Bore: 25mm
- Stroke: 21.3mm
- Output: 1.14ps/1.12hp @ 11.000RPM
- Practical RPM range: 2.400～11.000
- Engine Weight：442g
- Silencer Weight: 44g
Propeller size:
- Sport/stunt: 12x6-8 or 13x6-7
- Scale : 14x6ç
